Flatiron-style wedge home on a triangular plot, 20 × 16 × 12 m

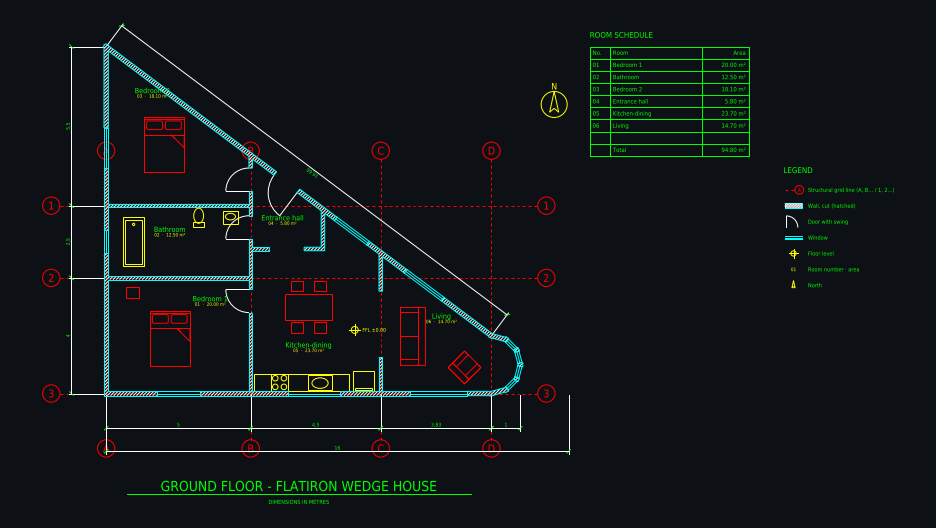

The ground-floor plan is drawn in plan.dxf (with preview.png), and the final preview checks against the brief. The room areas in the schedule are my hand estimates, not measured from the walls. - Shape: a 12/16/20 m right-triangle plot. The narrow tip is cut where the plot is 2 m wide and closed with a semicircular wall carrying four window panes, so the building is about 14.3 m long rather than the full 16 m. - Grid: A–D at x 0 / 5 / 9.5 / 13.33 m and 1–3 at y 12 / 6.5 / 4 / 0 m. Exterior walls are 0.15 m and interior walls 0.12 m. - Rooms and estimated areas, about 94.8 m² in total: | Room | Area | |---|---| | Bedroom 1 | 20.0 m² | | Bathroom | 12.5 m² | | Bedroom 2 | 18.1 m² | | Entrance hall | 5.8 m² | | Kitchen-dining | 23.7 m² | | Living room | 14.7 m² | - Contents: doors, windows, furniture, bathroom and kitchen fixtures, room tags, dimension chains, level marker, north arrow and title, with the room schedule and legend to the right of the plan. - Layers: A-WALL, A-WALL-PATT, A-DOOR, A-GLAZ, A-FURN, A-FLOR-FIXT, A-GRID, A-ANNO-DIMS, A-ANNO-TEXT, A-ANNO-SYMB. Assumptions: - The 20 m side (the hypotenuse) is the long side. The entrance is on it, opening into the hall. - The living room is only partly separated from the kitchen-dining, by short wall stubs on each side of a wide opening. - Bedroom 1 is entered from the kitchen-dining. Bedroom 2 and the bathroom are entered from the hall. - It is a single storey, so there are no stairs. No trees are drawn because the building fills almost the whole plot.
