Text to CAD: describe the building, get the floor plan as DXF
Write what you want in plain words, in any language, and Plan Chat’s AI drafter turns it into a CAD floor plan: a room program fitted to your size, walls on a grid, doors and windows, furniture, dimensions and room areas. Keep refining it in conversation, then download a DXF, DWG or a scaled PDF.
Some new accounts get their first drawing free while we test it.
How it works
1. Write the brief
Rooms, approximate size, number of storeys, style and plot. One or two sentences are enough; more detail gives you more control.
2. The drafter plans and draws
It reports the overall size, grid and room list it chose, then draws the plan step by step, live.
3. Refine in words
"Bedroom 2 a bit larger", "add a window to the bathroom", "garage on the street side": each change is a new version.
Real drawings: text to cad in practice
All community drawings →
Castle home 14 × 14 m with four round corner towersFrom a written brief · 1 min · DXF
Shipping container home 12.2 × 7.3 m, 2 bedroomsFrom a written brief · 1 min · DXF

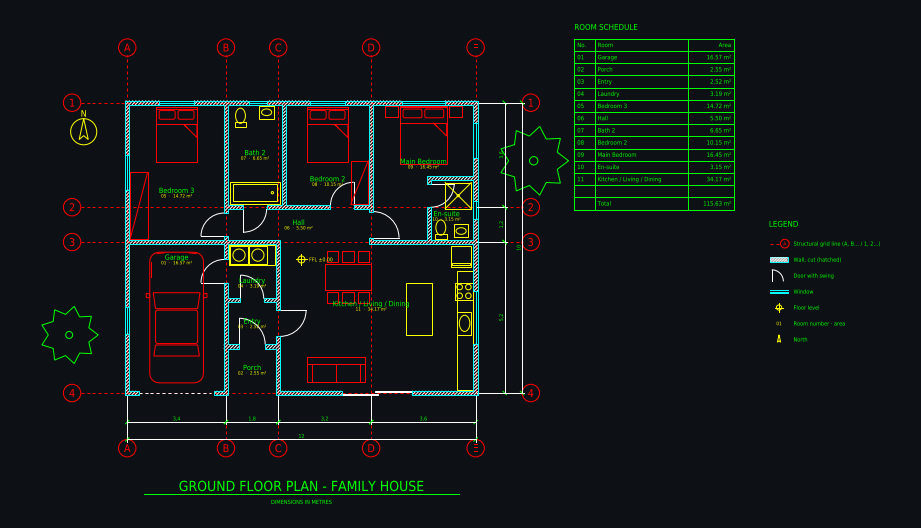

Family house 12 × 10 m, 3 bedroomsFrom a written brief · 3 min · DXF
Ground floor 8 × 15 m, drawn from a photo of a planFrom a photo / sketch · 2 min · DXF
Assumptions in the open
Anything you did not specify, the drafter decides and says so, instead of asking you twenty questions first.
Metric or imperial
"About 1,800 sq ft" gives you feet and inches and sq ft areas; "120 m²" gives you metres and m².
Ready for your CAD program
The DXF and DWG carry standard layers, real door and window blocks and dimension entities.
What you get
| DXF | Layered, opens in AutoCAD, BricsCAD, DraftSight, LibreCAD, QCAD, Rhino, SketchUp (import) and Revit (link). |
|---|---|
| DWG | AutoCAD 2010 format, so every AutoCAD from 2010 on and most DWG-compatible programs open it. |
| A3 landscape sheet plotted to a true scale (1:50, 1:100 …) with a border and a title block. |
Plus a 3D model built from the same walls and openings, photoreal renders of any version, and every version kept with its own link.
Layers in the drawing
| A-WALL | walls, with A-WALL-PATT for the cut hatch |
|---|---|
| A-DOOR / A-GLAZ | doors with swings, windows |
| A-GRID | structural grid with bubbles (A, B, C … / 1, 2, 3 …) |
| A-ANNO-DIMS | dimension chains, overall and per bay |
| A-ANNO-TEXT | room names, numbers and areas, room schedule |
| A-FURN / A-FLOR-FIXT | furniture, kitchen and bathroom fixtures |
| A-FLOR-STRS / A-SITE / A-PLNT | stairs, site elements, trees |
Tips for the best result
- Lead with the total size and the bedroom count.
- Mention relationships: "laundry off the garage", "office near the entry".
- Give the plot width if the house has to fit a narrow lot.
- Ask for one floor at a time for multi-storey buildings.
Questions
Can AI create a floor plan from a text description?
Yes. Plan Chat turns a written description into a dimensioned CAD floor plan with walls, doors, windows, furniture, room names and areas, which you can then change by describing the change.
What should I write in the description?
The total area or overall size, the rooms you need, the number of storeys and anything that matters to you about where rooms sit. The drafter fills in the rest and tells you what it assumed.
Can I write in my own language?
Yes. The drafter answers in the language of your message and labels the rooms in it, for example Spanish, German, French or Portuguese.
What file do I get?
A layered DXF, a DWG (AutoCAD 2010) and a PDF sheet on A3 at a true scale with a title block. You can also view the plan in 3D and order photoreal renders.
How is this different from an AI image generator?
An image generator paints something that looks like a plan. Plan Chat draws a measured CAD file: dimensions and areas are computed from the geometry and every element can be edited.
Try it with your own plan
Drawings, changes and renders use credits from an AI Architectures plan, from $12 a month; DXF, DWG and PDF downloads are included. See pricing.
Open the CAD studioMore ways to use Plan Chat
- Sketch to CAD: turn a hand-drawn floor plan into a DXF / DWG with AI
- Floor plan image to DXF: convert a JPG, PNG or photo of a plan to CAD
- Convert a floor plan to DWG for AutoCAD with AI (from an image, sketch or description)
- AI CAD floor plan generator: dimensioned floor plans in DXF and DWG
- 2D floor plan maker with AI: dimensioned 2D plans as CAD (DXF, DWG, PDF)
- Start from a measured house plan (ADU, ranch, farmhouse, two-story)
- Desktop app for Windows, Mac and Linux
AI concept drawings can contain mistakes: check dimensions and have a licensed architect or engineer review a plan before you build or apply for a permit. Plan Chat is part of AI Architectures by 20Vision: 500,000+ hours of drafting, modelling & rendering saved, 280 years of full-time work our users got back, across 80,000+ designs.
