A two-story, 4-bedroom family home designed from one message, then changed by chat
This is a real Plan Chat session from October 2, 2026: one message produced the first dimensioned plan, then 2 changes in plain words reworked it. The plans, numbers and renders below are the AI's unretouched output; the change lists are measured by the plan engine, not written by hand.
Final plan: 5 bed · 4.5 bath · 2 stories · 3,246 sq ft under roof.
Your first plan preview is free, no account needed.

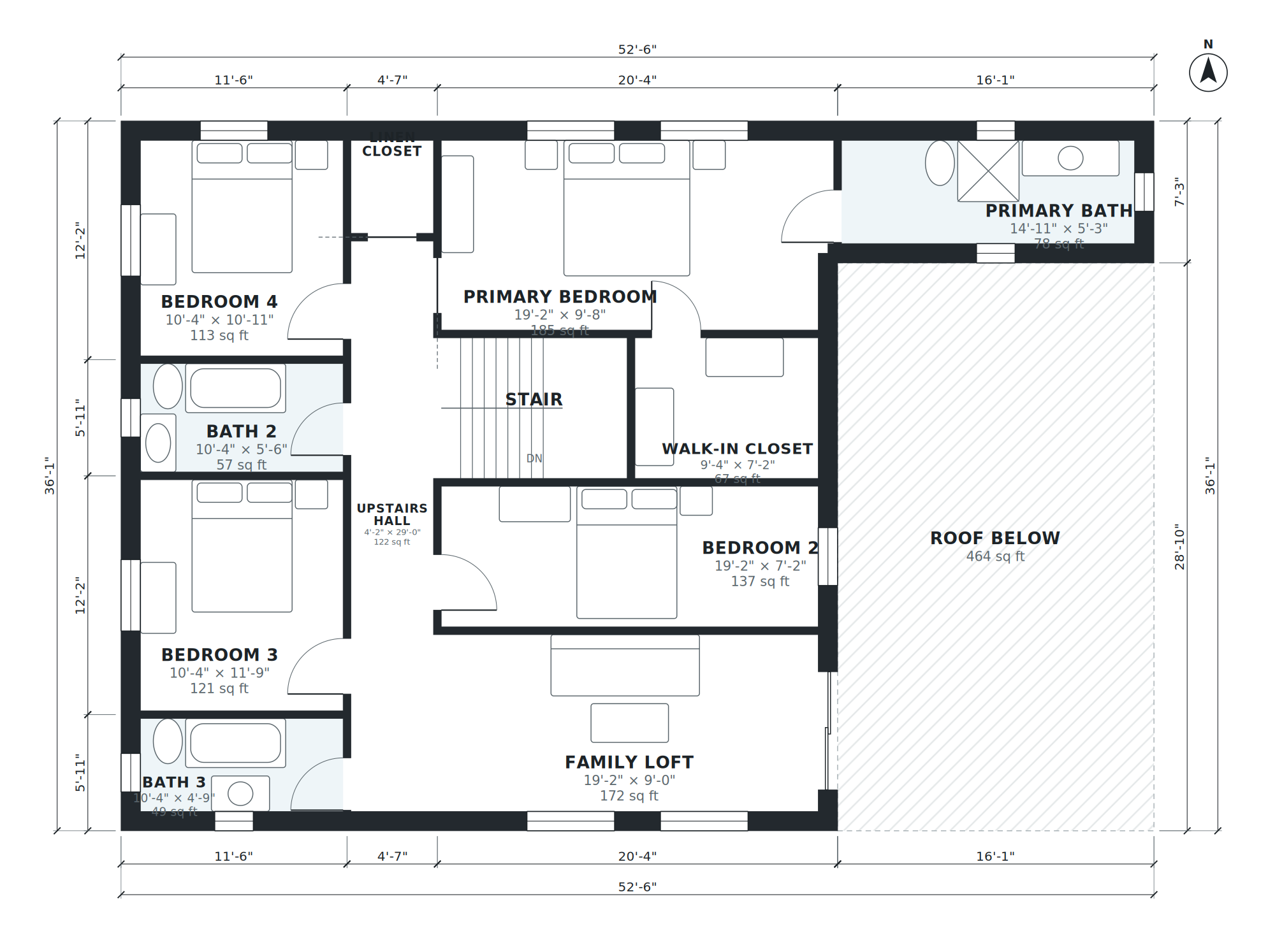

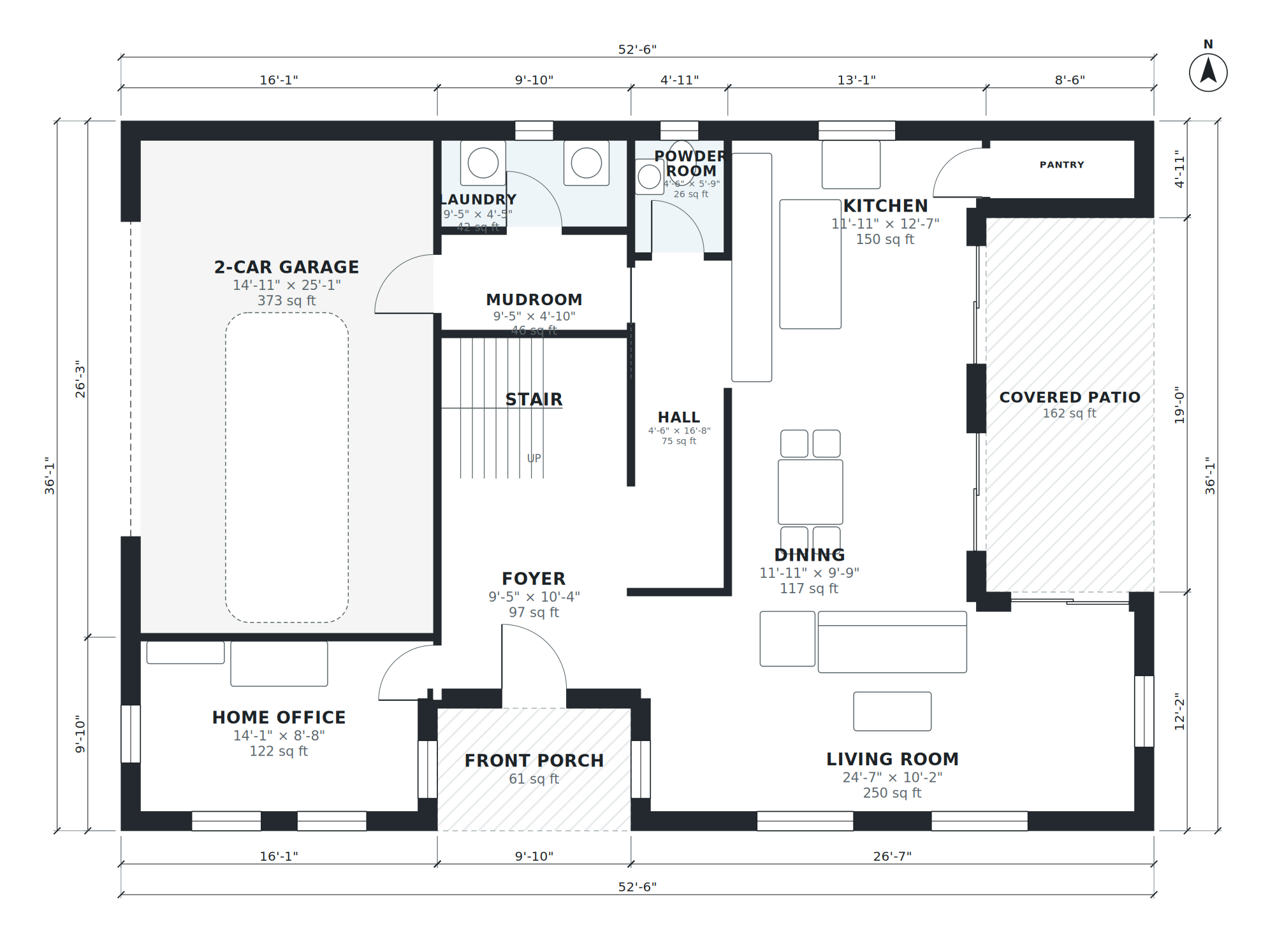

Version 1: the first plan from one message
YouTwo-story modern family home on a 50 ft wide lot: 4 bedrooms and 3.5 baths, all bedrooms upstairs, open kitchen, dining and living downstairs, a home office, mudroom and laundry next to a 2-car garage, covered back patio, about 2,800 sq ft.
Plan Chat, 5 minutes laterA two-story modern home of about 2,800 sq ft. The ground floor has an open kitchen, dining and living area with a covered back patio, a front home office, a powder room, and a mudroom and laundry between the kitchen and the 2-car garage. Upstairs are four bedrooms, including a primary suite with bath and walk-in closet, two more baths and a family loft.
- Bedrooms
- 4
- Bathrooms
- 3.5
- Stories
- 2
- Under roof
- 3,101 sq ft (288.1 m²)
- Footprint
- 52'-6" × 36'-1"
- Style
- modern

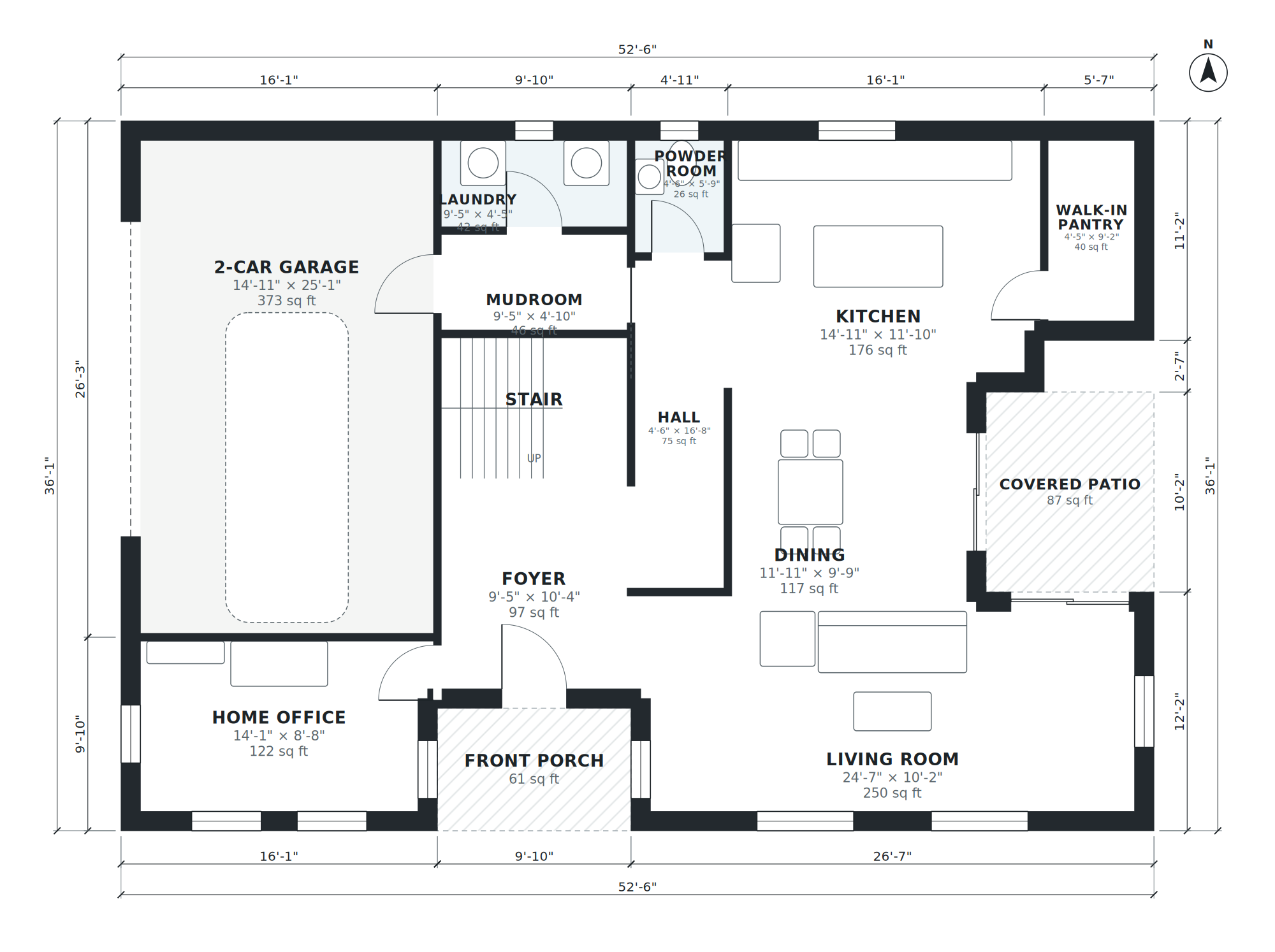

Version 2: a change asked for in plain words
YouMake the kitchen bigger and add a walk-in pantry
Plan Chat, 38 seconds laterI enlarged the kitchen and turned the small pantry into a proper walk-in pantry that opens off the kitchen. All other rooms stay as they were. The heated area grows (+61 sq ft). Result: Kitchen 150 sq ft → 176 sq ft; Walk-in Pantry 22 sq ft → 40 sq ft.
What changed (measured on the new plan)
- Pantry became Walk-in Pantry
- Kitchen: 150 → 176 sq ft (+26)
- Walk-in Pantry: 22 → 40 sq ft (+18)
- Covered Patio: 162 → 87 sq ft (-75)
- Whole house: 3,101 → 3,162 sq ft
23 other rooms kept their size and place.
- Bedrooms
- 4
- Bathrooms
- 3.5
- Stories
- 2
- Under roof
- 3,162 sq ft (293.8 m²)
- Footprint
- 52'-6" × 36'-1"
- Style
- modern

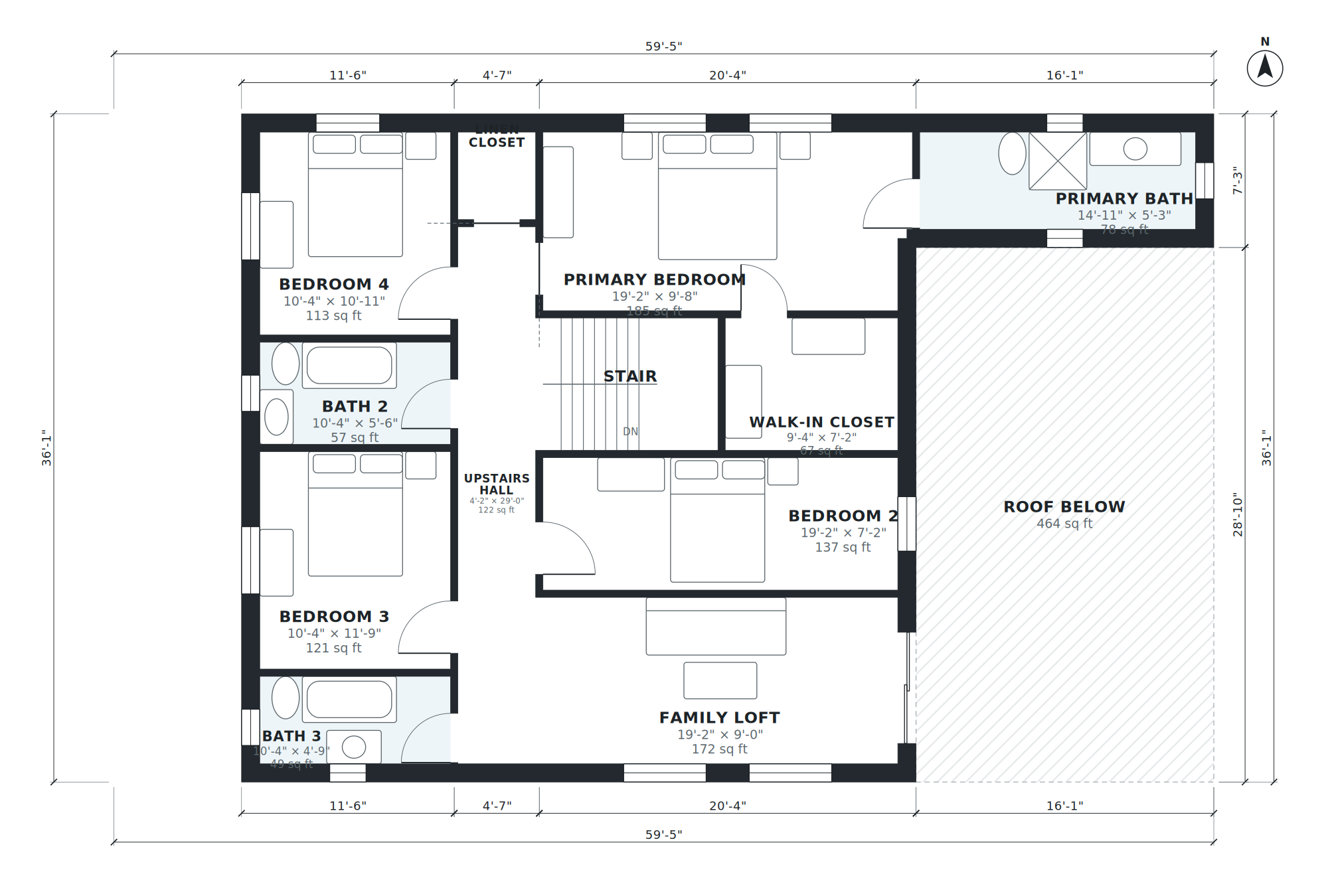

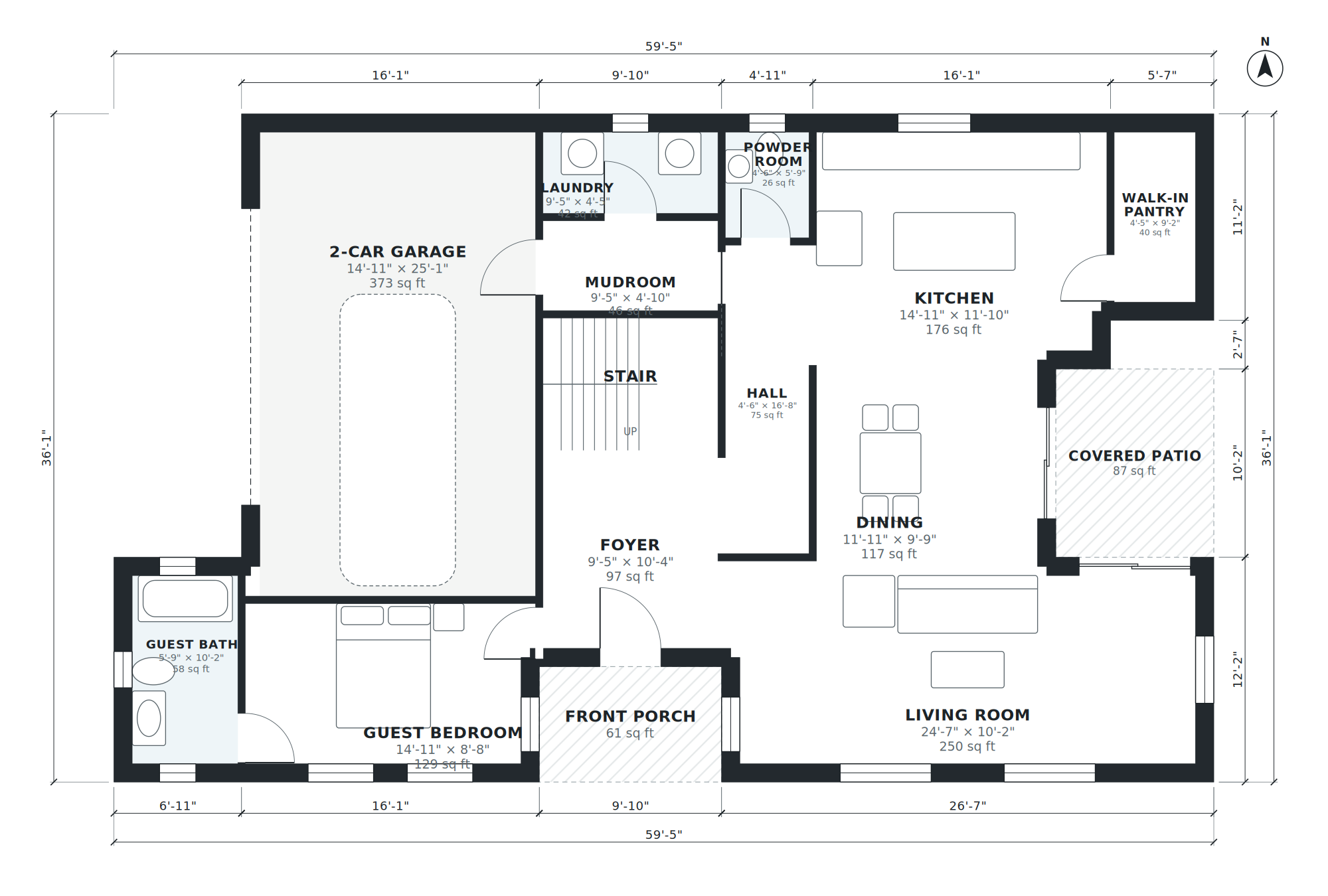

Version 3: a change asked for in plain words
YouTurn the office into a guest bedroom with its own full bath
Plan Chat, 42 seconds laterI turned the home office into a guest bedroom and added a private full bath next to it, reached only from the guest room. The footprint grows from 52'-6" × 36'-1" to 59'-5" × 36'-1" (+84 sq ft). Result: new Guest Bath 58 sq ft.
What changed (measured on the new plan)
- Added Guest Bath
- Home Office became Guest Bedroom
- Whole house: 3,162 → 3,246 sq ft
26 other rooms kept their size and place.
- Bedrooms
- 5
- Bathrooms
- 4.5
- Stories
- 2
- Under roof
- 3,246 sq ft (301.5 m²)
- Footprint
- 59'-5" × 36'-1"
- Style
- modern
Room schedule of version 3 (28 spaces)
| Room | Size | Area |
|---|---|---|
| Front Porch · ground | 9'-10" × 6'-3" | 61 sq ft |
| Foyer · ground | 9'-5" × 10'-4" | 97 sq ft |
| Living Room · ground | 24'-7" × 10'-2" | 250 sq ft |
| Dining · ground | 11'-11" × 9'-9" | 117 sq ft |
| Kitchen · ground | 14'-11" × 11'-10" | 176 sq ft |
| Walk-in Pantry · ground | 4'-5" × 9'-2" | 40 sq ft |
| Guest Bedroom · ground | 14'-11" × 8'-8" | 129 sq ft |
| Guest Bath · ground | 5'-9" × 10'-2" | 58 sq ft |
| Powder Room · ground | 4'-6" × 5'-9" | 26 sq ft |
| Hall · ground | 4'-6" × 16'-8" | 75 sq ft |
| Stair · ground | 9'-5" × 7'-2" | 68 sq ft |
| Mudroom · ground | 9'-5" × 4'-10" | 46 sq ft |
| Laundry · ground | 9'-5" × 4'-5" | 42 sq ft |
| 2-Car Garage · ground | 14'-11" × 25'-1" | 373 sq ft |
| Covered Patio · ground | 8'-6" × 10'-2" | 87 sq ft |
| Stair · floor 2 | 9'-5" × 7'-2" | 68 sq ft |
| Upstairs Hall · floor 2 | 4'-2" × 29'-0" | 122 sq ft |
| Family Loft · floor 2 | 19'-2" × 9'-0" | 172 sq ft |
| Linen Closet · floor 2 | 4'-2" × 4'-9" | 20 sq ft |
| Primary Bedroom · floor 2 | 19'-2" × 9'-8" | 185 sq ft |
| Primary Bath · floor 2 | 14'-11" × 5'-3" | 78 sq ft |
| Walk-in Closet · floor 2 | 9'-4" × 7'-2" | 67 sq ft |
| Bedroom 2 · floor 2 | 19'-2" × 7'-2" | 137 sq ft |
| Bedroom 3 · floor 2 | 10'-4" × 11'-9" | 121 sq ft |
| Bedroom 4 · floor 2 | 10'-4" × 10'-11" | 113 sq ft |
| Bath 2 · floor 2 | 10'-4" × 5'-6" | 57 sq ft |
| Bath 3 · floor 2 | 10'-4" × 4'-9" | 49 sq ft |
| Roof Below · floor 2 | 16'-1" × 28'-10" | 464 sq ft |
Photoreal renders of the final plan
Rendered from the 3D model of version 3 with one click. AI-generated images; materials and landscaping are suggestions.
What you get from a session like this
- A dimensioned floor plan for every version, in feet-inches or metres, with room names and areas.
- Files for each version: PDF plan set, DXF for AutoCAD and other CAD tools, IFC for Revit and Archicad, GLB 3D model, CSV area schedule.
- Every change as its own version with a link. Undo or restore any version for free.
- Optional photoreal renders (exterior, aerial, interior) of the current version.
This whole session used 757 credits; the Starter plan includes 5,000 credits a month. See pricing. AI concept designs, not construction documents: have a licensed professional check any plan before you build or apply for a permit.
